38CHG
- High-Low Speed Selectable
- Condenser Motor
- High Performance Sirocco Fan
As low as $608.00
Out of stock
SKU
38CHG
- Reverse flow prevention shutter is installed on the side of the adapter
- Seam-processed casing
- Long-life Motor
- High performance sirocco fan
- Square to round adapter equipped with nail
- Cassette type discharge opening
- Pre-painted colour steel casing
- One-touch louver
*All prices include 8% GST, exclude delivery and installation.

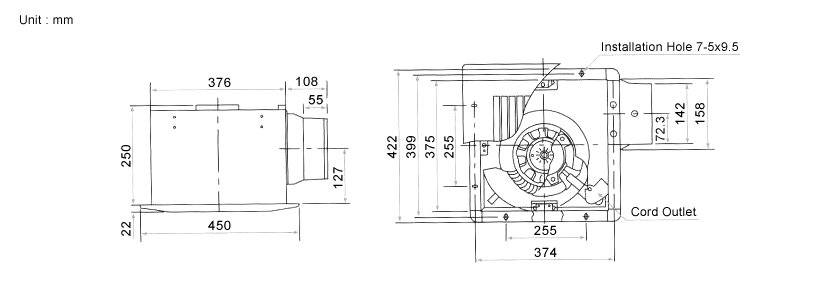

mm

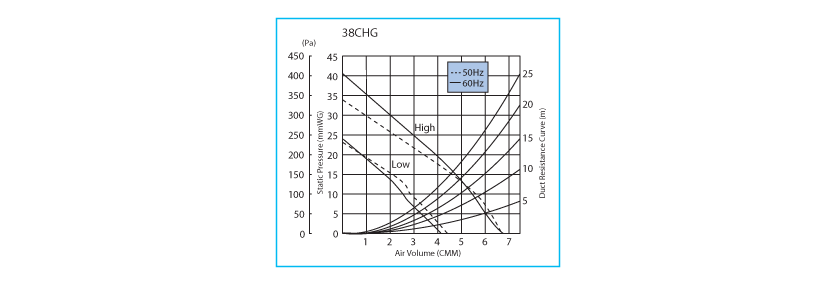

PERFORMANCE DATA
| Model | Hz | Consumption (W) | RPM | Air Volume | Noise | Weight | Installation Space | ||||||
| High | Low | High | Low | High | Low | High | Low | ||||||
| (W) | (W) | CMH | CFM | CMH | CFM | dB(A) | db(A) | (kg) | (mm) | ||||
| 38CHG | 50 | 122 | 89 | 790 | 540 | 800 | 471 | 525 | 309 | 580 | 40 | 10.4 | 385 x 385 |
| 60 | 138 | 90 | 760 | 509 | 790 | 465 | 500 | 294 | 49 | 39 | 10.4 | 385 x 385 | |
- 38CHG VENT FAN CEILING MOUNT W/ 2 SPEED
